Corrected A100 energy and W&B rerun

AI authored, 2026-09-15. This audit corrects the energy claim in submission #83. Accuracy and runtime reproduce; the original 3.815 mJ above idle does not. The corrected submission value is 173.793 mJ above idle for one complete 10,000-training / 10,000-prediction task.

Measured results

All entries are medians on NVIDIA A100-SXM4-40GB. The published measurement is preserved as historical evidence. The primary corrected value uses the separate sampled-power integration path; the counter provides a cross-check.

Method	Above idle (mJ/task)	Runtime (ms/task)
Original published result	3.815	3.334
Fresh original protocol: counter, 5 s idle	165.564	3.383
Independent harness: counter, 10 s idle	174.878	3.335
Independent harness: power integration, 10 s idle	173.793	3.335

All 110,000 predictions match, with 105,130 correct (95.5727%). Original graph replay checks, scratch poisoning and training-label rotation checks pass. The independent protocol measures draw 0 with 6,000 / 12,000 / 6,000 replays, interleaving two 20-second idle-only controls. Validation covers all eleven frozen draws; energy is not averaged over eleven different datasets.

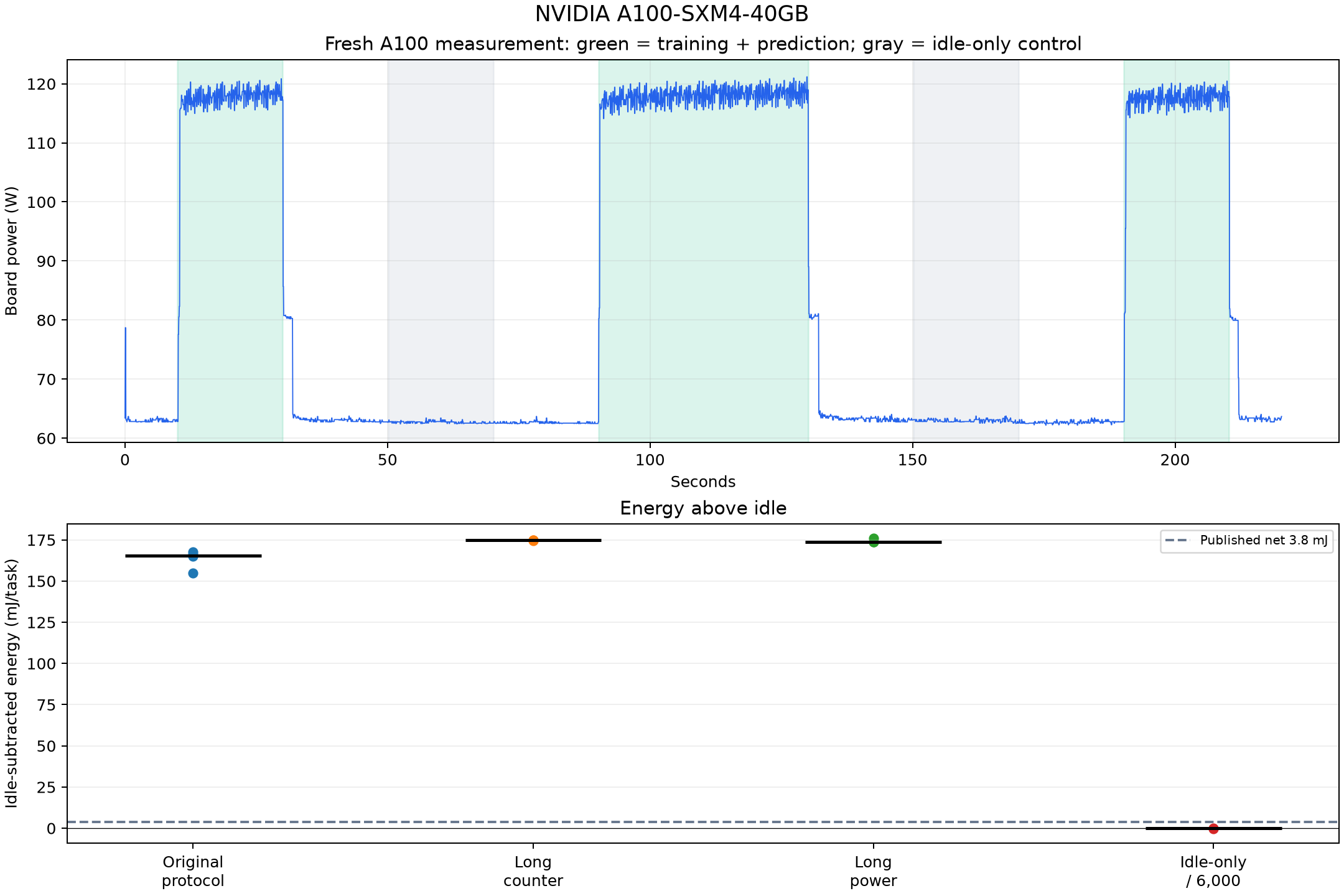

Power is sampled approximately every 50 ms and integrated by trapezoidal rule over approximately 20- or 40-second active windows, then divided by replay count:

net J/task = [active integral - mean(before-idle W, after-idle W) × active seconds] / replays

Subtracting paired idle power gives approximately 174 mJ above idle, 45.6 times the archived result. The original archive implies approximately 41 W active; the cause of that difference has not been established. A prior separate matching-model audit also measured approximately 176 mJ above idle by power integration; the tracked run here is the source of the corrected submission value.

Idle windows include a short post-work power tail. An exploratory calculation that drops their first three seconds gives 180.111 mJ net; it is a baseline sensitivity check, not the primary result or a confidence interval. Idle-only controls contain zero replays; their net noise is expressed per 6,000 nominal tasks. Negative values are retained. Raw timestamps, samples and all rounds are included for independent recalculation.

Scope and instrumentation

The unchanged learner performs the full feature transform, basis fitting, projection, QDA training and 10,000 predictions in each CUDA graph replay. Inputs are GPU-resident. Transfers, resizing, allocation, initialization and capture are excluded; host dispatch gaps are included. This is warm repeated execution, not cold end-to-end energy.
Both NVML readouts share GPU sensors. They measure board energy, not host CPU, cooling, power-supply losses or external wall-plug energy.
The GPU model and PyTorch 2.5.1+cu124 match the publication; this is a different physical board. Driver 580.95.05 differs from published 580.105.08. TF32 is off. Full board identity, clocks, temperatures and software versions are archived.
Modal reports the worker’s GPU context as PID 1. Before measuring, the runner checks that no GPU compute process exists, creates a context, and verifies that allocating and releasing 128 MiB changes the sole reported process’s memory accordingly. Only the original self-PID filter is instrumented to accept that demonstrated alias. Both guards continue rejecting other reported PIDs. No learner or measurement arithmetic is changed. Earlier attempts that did not recognize the alias aborted before energy measurement; they contributed no energy results to this run.
W&B initializes on the local controller before dispatch. GPU samples are buffered and logged after measurement, avoiding SDK activity in the timed GPU process. W&B controller system statistics are disabled; telemetry/* contains the measured GPU data with an elapsed-seconds axis.
The measured scripts and inputs are also archived in W&B. The checked-in tracker additionally accepts WANDB_ENTITY and WANDB_PROJECT for reruns, limits the displayed energy metrics and plot to above-idle energy, and rechecks all saved comparison arithmetic against raw intervals. These controller-only changes do not alter measurement. The preparation helper verifies learner source and exact input hashes before a new allocation.

Recalculate saved evidence without a GPU

From this directory, using Python 3.11 and uv:

uv run --python 3.11 --with-requirements requirements-controller.txt python analyze.py --results results-sxm40
uv run --python 3.11 --with-requirements requirements-controller.txt python verify_wandb.py

The first command recomputes counter arithmetic and sampled-power integrals, checks validation and process-monitor status, and regenerates summary and plot. The second reads W&B and checks finished status, summary values and artifacts; it requires access to the linked project. Neither allocates a GPU.

Rerun on a matching GPU

Authenticate the Modal CLI (modal token new) and W&B (wandb login) in an environment containing the pinned controller requirements. From the repository root, prepare a new directory using the pinned W&B input artifact:

uv run --python 3.11 --with-requirements mnist/submissions/medium-pca-qda-20260915/energy-audit/requirements-controller.txt \
  python mnist/submissions/medium-pca-qda-20260915/energy-audit/prepare_rerun.py /tmp/pca-qda-energy-rerun
cd /tmp/pca-qda-energy-rerun
# Set these to a W&B destination you can write to.
export WANDB_ENTITY=your-wandb-entity
export WANDB_PROJECT=sutro-mnist-tiers
uv run --python 3.11 --with-requirements requirements-controller.txt python run_wandb.py
uv run --python 3.11 --with-requirements requirements-controller.txt python verify_wandb.py

The preparation command downloads only the exact frozen inputs from the versioned W&B artifact and checks all eleven payload hashes. If those inputs are already available locally, append --payloads /path/to/payloads to preparation to avoid the download. A fresh output directory is required; archived evidence is not overwritten. The new run URL is printed and saved in wandb-run.json.

The runner allocates one A100 through Modal and requires the exact NVIDIA A100-SXM4-40GB model. A different model or another reported compute process aborts the run. The remote image is pinned by digest and requires PyTorch 2.5.1+cu124. The measured workload takes approximately six minutes, plus image startup and artifact transfer. The remote app shuts down after completion.

Evidence

The original ../results/gpu_results.json is unchanged. plan-wandb.json records the hashes of the scripts used in the completed measurement, before the added rerun destination options. payload-manifest.json is the exact measured input manifest; the payload binaries live in the versioned W&B artifact instead of Git.
